ICOM
7300MK2
HF Excellence, Evolved — Even More Excitement

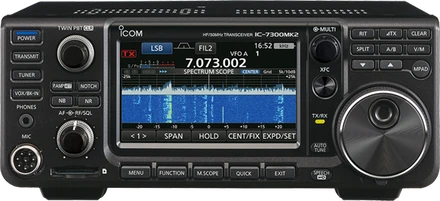

An Enhanced IC-7300
The IC-7300MK2 is an enhanced version of the highly popular IC-7300, which was Icom’s first amateur radio to employ RF direct sampling technology and sold over 100,000 units worldwide. It delivers high-end performance and features in a compact, cost-effective package, with RMDR improved by more than 12dB, transmit phase noise reduced by over 12dB and reduced heat generation for stable extended operation.
Performance Characteristics
Frequency coverage:
Rx:
0.030–74.800MHz
Tx:
1.800–29.700MHz
50.000–54.000MHz
Power Output:
0.6–100W (SSB, CW, FM, RTTY)
0.125–25W (AM)
Mode:
SSB, CW, RTTY, AM, FM
Receiver system:
Direct sampling superheterodyne
Number of channels:
101 (99 regular, 2 scan edges)
Antenna connectors:
1 × SO-239
2 × SMA (receive antenna in/out)
User Environment
Operating temperature
14°F to 140°F
Physical Characteristics
Dimensions W x H x D
9.4×3.7×9.4in
Weight
9.0lb
Display
4.3 inch color IPS touch LCD
Power supply
13.8V DC ±15%
What Is New Compared With the IC-7300
RMDR improved by approximately 12dB typical, transmit phase noise reduced by approximately 12dB, and lower receive standby current (0.7A against 0.9A). Improved fan control reduces operating noise, and heat generation is lower for stable extended operation.
External Display Output and CW Decoder
An HDMI™ port drives an external display, and a CW decoder is now built in. A USB Type-C™ port with dual COM ports and a LAN port are also fitted, along with dedicated receive antenna connectors for bandpass filters and preamplifiers.
Class Leading Real-Time Spectrum Scope
The real-time spectrum scope and high-resolution waterfall let you check band activity while listening, and touch tuning moves you straight to an intended signal.
15 Discrete RF Bandpass Filters
A bank of 15 discrete bandpass filters, combined with Icom’s IP+ technology, improves intermodulation distortion performance when a strong signal sits close to a weak one.
Built-in Automatic Antenna Tuner
The built-in automatic antenna tuner, audio scope, automatic contest serial numbering and one-touch FT8 mode preset are all carried over and refined.
Audio Peak Filter for CW
A new APF (Audio Peak Filter) sharpens weak CW signals out of the noise.
